Fast, Memory Efficient Dictionary in ClickHouse

## [Fast, Memory Efficient Dictionary in ClickHouse](https://azat.sh/presentations/2023-memory-efficient-dictionary/)

#### <small>_Azat Khuzhin (ClickHouse-Team)_</small>
        #### <small>_(a.khuzhin@semrush.com)_</small>

---
        ### Outline

- Building fast, memory efficient hash table
        - History
        - Measure performance (memory and CPU)
        - Calculate the memory usage right!
        - Trade-offs
        - Production example

---
        ### Problem

pagerank

- tens of trillions of links
        - hundred of billions of URLs with rank

_For simplicity, in examples, I will assume that we have ranks only for 1 billion of URLs_

The obvious solution is to use `HASHED` dictionary.

---
        ### Dictionaries

Dictionaries are builtin key-value storages in ClickHouse

Use cases:
        - enrich your data (and more)
        - sharding
        - ...

---
        ### `HASHED`

- Uses internal hash table implementation (`HashMap`)
        - Which is very performant (used everywhere)

```sql [|9]
        CREATE DICTIONARY ranks_hashed
        (
            `Key` UInt64,
            `Value` UInt16
        )
        PRIMARY KEY Key
        SOURCE(CLICKHOUSE(TABLE 'local_ranks'))
        LIFETIME(0)
        LAYOUT(HASHED());
        ```

---
        ### `HASHED`: Loading

```sql [|2]
        SYSTEM RELOAD DICTIONARY ranks_hashed;
        0 rows in set. Elapsed: 266.147 sec.
        ```

```sql [|9-11]
        SELECT
            formatReadableQuantity(element_count) AS keys,
            formatReadableSize(bytes_allocated) AS memory,
            loading_duration,
            round((element_count / loading_duration) / 1000000., 2) AS speed_mps
        FROM system.dictionaries
        WHERE name = 'ranks_hashed'

┌─keys─────────┬─memory────┬─loading_duration─┬─speed_mps─┐
        │ 1.00 billion │ 32.00 GiB │          231.337 │      4.32 │
        └──────────────┴───────────┴──────────────────┴───────────┘
        ```

*32GiB is it a lot or not? Let's figure this out*

---
        ### `HASHED`: Lookup

```sql [|4|11]
        SELECT count()
        FROM local_ranks
        WHERE dictGet(ranks_hashed, 'Value', Key) != Value
        SETTINGS max_threads = 1

┌─count()─┐
        │       0 │
        └─────────┘

1 row in set. Elapsed: 88.135 sec. Processed 1.00 billion rows,
          10.00 GB (11.35 million rows/s., 113.46 MB/s.)
        ```

---
        ### `HASHED`: Summary

- **Memory usage**: **32GiB**
        - **Lookup** (1 thread): **11.35 million rows/s** (113.46MB/s)
        - **Load speed**: **4.32 million rows/s**

---
        So let's:

- revise this numbers
        - estimate how much RAM it should use

---
        Structure:
        - 1 billion of keys
        - 8 byte key
        - 2 byte value

Optimal:
        - 9.31GiB for array
        - **11.64GiB** with load factor 0.75

Real:
        - **32GiB (2.7x more!)**

For production data:
        - **~4.2TiB to 15TiB**
        - **Double for reload!**

---
        ### What's next?

- The problem is that HASHED dictionary is not optimal in terms of memory
        - So if you need such, you need different layout,
        - But there is no layouts that better then HASHED for our case...

---
        ### Alternatives

- Use separate key-value system
        - Write your own key-value
        - Improve ClickHouse

---
        ### Under the hood of `HashMap`

*Remember, this is ClickHouse builtin implementation*

- Open addressing

</div>

- Linear probing

</div>

- Maximum load factor is **0.5**

```sql
          SELECT round(load_factor, 4) FROM system.dictionaries WHERE name = 'ranks_hashed'

┌─round(load_factor, 4)─┐
          │                0.4657 │
          └───────────────────────┘
          ```

So this leads us to **20.37GiB** of RAM (**2.19x**)

</div>

- Quadratic size growing - **24GiB** (**2.58x**) _(Requried for fast lookups)_

_And one more thing..._

</div>

- C++ structure alignment - **32GiB** (**3.44x**)

</div>

*So, seems that we need to choose other hashtable implementation, that luckily will perform better, right?*

</div>

---
        ### Hash tables comparison

**You should always do benchmarks!**

| container                                                                                     | insert     | find      | maxrss       |
        | -----------------------------                                                                 | ---------- | --------- | ------------ |
        | [`google::sparse_hash_map`](https://github.com/sparsehash)                                    | 717.639    | 227.964   | **17575MiB** |
        | [`tsl::sparse_map`](https://github.com/Tessil/sparse-map)                                     | 306.876    | 113.303   | 20071MiB     |
        | [`sparsepp`](https://github.com/greg7mdp/sparsepp)                                            | 390.99     | 142.251   | 19807MiB     |
        | [`folly::F14VectorMap`](https://github.com/facebook/folly/blob/master/folly/container/F14.md) | 134.315    | 49.4222   | 32921MiB     |
        | [`folly::F14FastMap`](https://github.com/facebook/folly/blob/master/folly/container/F14.md)   | 140.811    | 61.6684   | 49304MiB     |
        | [`robin_hood::unordered_map`](https://github.com/martinus/robin-hood-hashing)                 | 114.843    | 55.5778   | 52227MiB     |
        | [`phmap::flat_hash_map`](https://github.com/greg7mdp/parallel-hashmap)                        | 96.6087    | 86.0701   | 52227MiB     |
        | [`folly::F14NodeMap`](https://github.com/facebook/folly/blob/master/folly/container/F14.md)   | 195.283    | 49.7657   | 49288MiB     |
        | [`google::dense_hash_map`](https://github.com/sparsehash)                                     | 89.6095    | 58.1243   | 49155MiB     |

<small>*Results for 8 byte key and 8 byte value*</small>

<small>*https://github.com/azat-archive/hashtable-bench*</small>

- *`maxrss` had been measured with glibc*

---
        ### `SPARSE_HASHED`

```[|16]
        $ git show  --stat 6fa234c
        Date:   Sun Sep 22 15:55:36 2019 +0300

Merge pull request #6894 from azat-archive/hashed-dict-memory-usage-v2

[RFC] Add sparsehash support for hashed dictionary (to reduce memory usage)

dbms/src/Dictionaries/CMakeLists.txt                       |   2 ++
         dbms/src/Dictionaries/HashedDictionary.cpp                 | 122 +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++-------------------------
         dbms/src/Dictionaries/HashedDictionary.h                   |  38 +++++++++++++++++++++++++++++++++++++-
         dbms/src/Functions/CMakeLists.txt                          |   2 +-
         dbms/tests/config/ints_dictionary.xml                      |  63 +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
         dbms/tests/queries/0_stateless/00950_dict_get.reference    |   3 +++
         dbms/tests/queries/0_stateless/00950_dict_get.sql          |  28 ++++++++++++++++++++++++++++
         docs/en/query_language/dicts/external_dicts_dict_layout.md |  13 +++++++++++++
         8 files changed, 244 insertions(+), 27 deletions(-)
        ```

<small>*For the first version*</small>

- *It does not show submodules*
        - *I doubt that writing external implementation will have less code*

---
        ### `SPARSE_HASHED`

```sql [9]
        CREATE DICTIONARY ranks_sparse_hashed
        (
            `Key` UInt64,
            `Value` UInt16
        )
        PRIMARY KEY Key
        SOURCE(CLICKHOUSE(TABLE 'local_ranks'))
        LIFETIME(0)
        LAYOUT(SPARSE_HASHED());
        ```

<small>_Available since: [19.15](https://github.com/ClickHouse/ClickHouse/pull/6894)_</small>

---
        ### `SPARSE_HASHED`: Loading

```sql [|2]
        SYSTEM RELOAD DICTIONARY ranks_sparse_hashed;
        0 rows in set. Elapsed: 924.806 sec.
        ```

```sql [|10-12]
        SELECT
            formatReadableQuantity(element_count) AS keys,
            formatReadableSize(bytes_allocated) AS memory,
            round(load_factor, 4) AS load_factor,
            loading_duration,
            round((element_count / loading_duration) / 1000000., 2) AS speed_mps
        FROM system.dictionaries
        WHERE name = 'ranks_sparse_hashed'

┌─keys─────────┬─memory────┬─load_factor─┬─loading_duration─┬─speed_mps─┐
        │ 1.00 billion │ 9.31  GiB │      0.4657 │          924.806 │      1.08 │
        └──────────────┴───────────┴─────────────┴──────────────────┴───────────┘
        ```

But:
        - **insertion** is **3.5x slower**!
        - **9.31GiB** looks like a array...

---
        ### `SPARSE_HASHED`: Memory

```c
        /// size() - returns table size, without empty and deleted
        /// and since this is sparsehash, empty cells should not be significant,
        /// and since items cannot be removed from the dictionary, deleted is also not important.
        ///
        /// FIXME: for google::sparse_hash_set value_type is Key, for sparse_hash_map
        /// value_type is std::pair<Key, Value>, and now we correctly takes into
        /// account padding in structures, if any.
        template <typename C> auto getBufferSizeInBytes(const C & c)
        requires (IsGoogleSparseHashTable<C>)
        { return c.size() * sizeof(typename C::value_type); }
        ```

So how can we measure the memory usage?

---
        ### `SPARSE_HASHED`: Memory

```sh
        $ clickhouse-local
        ```

```sql
        CREATE DICTIONARY ranks_sparse_hashed
        (
            `Key` UInt64,
            `Value` UInt16
        )
        PRIMARY KEY Key
        SOURCE(CLICKHOUSE(HOST '127.0.0.1' TABLE 'local_ranks'))
        LIFETIME(0)
        LAYOUT(SPARSE_HASHED())

SYSTEM RELOAD DICTIONARY ranks_sparse_hashed;
        ```

```sh
        $ pgrep -f clickhouse.*loc | xargs ps -o rss --no-header
        22.4g
        ```

**2x more!**

---
        ### `SPARSE_HASHED`: Lookup

```sql [|11]
        SELECT count()
        FROM local_ranks
        WHERE dictGet(ranks_sparse_hashed, 'Value', Key) != Value
        SETTINGS max_threads = 1

┌─count()─┐
        │       0 │
        └─────────┘

1 row in set. Elapsed: 272.786 sec. Processed 1.00 billion rows,
          10.00 GB (3.67 million rows/s., 36.66 MB/s.)
        ```

**3x slower!**

---
        ### `SPARSE_HASHED` vs `HASHED`

type|memory|lookup million rows/s *|load million rows/s|memory overhead
        -|-|-|-|-
        `HASHED`|32GiB|11.35|4.32|3.44
        `SPARSE_HASHED`|22.4GiB|3.67|1.08|2.36

---
        ### Under the hood of `sparsehash`

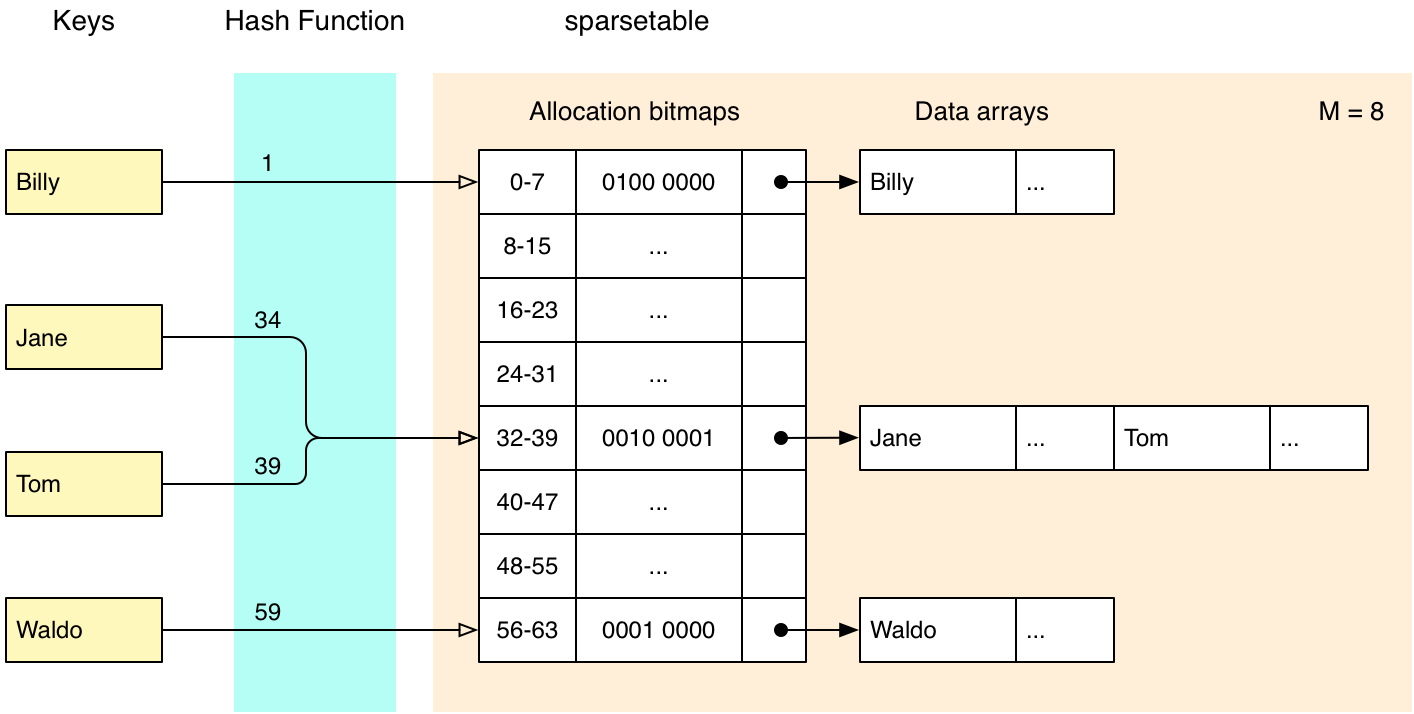

[![](sparsetable@2x.png)](https://tristanpenman.com/blog/posts/2017/10/11/sparsehash-internals/)

<small>*Original: https://tristanpenman.com/blog/posts/2017/10/11/sparsehash-internals/*</small>

---
        ### Under the hood of `sparsehash`

- **unused** elements requires only **1 bit**
        - **2.7 bits overhead per key** (even non existing):
          - group size: 48
          - bitmap (6 bytes)
          - pointer to the data (8 bytes)
          - number of free elements (2 bytes)
          - `(64+48+16)/48=2.6666666666667`

Approximate memory usage:

```sh
        $ sparsehash-bytes.py \
            --size 1000000000 \
            --structure-size 10 \
            --load-factor 0.456
        9.99 GiB
        ```

<small>_[sparsehash-bytes.py](https://gist.github.com/azat/fe1c087d2bc25f1b831281e1ff80ff9b)_</small>

---
        ### `SPARSE_HASHED`: Memory

First problem is the alignment/padding:

```sh
        $ sparsehash-bytes.py \
            --size 1000000000 \
            --structure-size 16 \
            --load-factor 0.456
        15.58 GiB
        ```

</div>

And another problem is memory allocator overhead!

- I've tried different allocators and they had different fragmentation, but the most fragmentation has jemalloc, due to slabs and lots of tiny allocations
        - AFAIR glibc has 18GiB of RAM
        - And I don't say anything about data locality...

</div>

---
        ### Under the hood of `jemalloc`

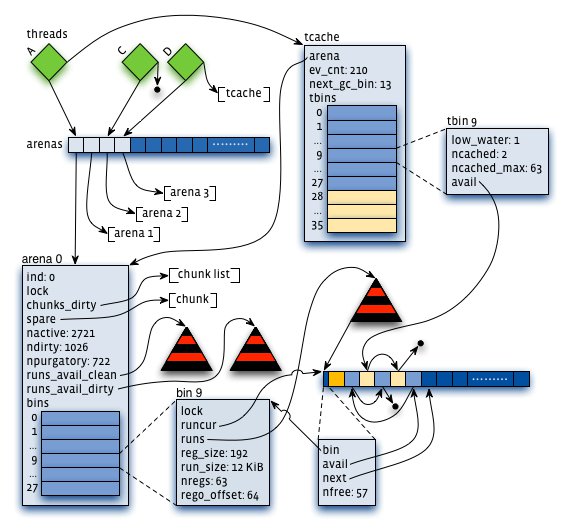

[![jemalloc](jemalloc-arena.jpg)](https://www.facebook.com/notes/10158791475077200/)

*Original: https://www.facebook.com/notes/10158791475077200/*

[**Redis memory defragmentation for jemalloc**](https://github.com/redis/redis/pull/3720)

---
        ### What's next?

All memory optimized hash tables will not work when size of your structure is just 10 bytes

So let's get back to `HashMap`.

---
        ### `HashMap`

Let's take a look at how it works with memory?

In terms of memory:
        - Just one block of memory (_for simple types_)
        - `mmap`/`munmap`
        - `mremap`

So, let's start with the simplest problem - structure padding:
        - 16 byte key-value: 32GiB
        - 10 byte key-value: 20GiB

**This will save 40% of RAM!**

<small>_Sometimes padding indeed can slow down things, but this is unlikely our case_</small>

---
        ### `SPARSE_HASHED` **v2**

```[|8]
        $ git diff b44497fd^..7b5d156cc5e4 --stat -- :^**examples** :^**tests**
         src/Common/HashTable/HashMap.h                      |  18 ++++++++++--------
         src/Common/HashTable/PackedHashMap.h                |  46 ++++++++++++++++++++++++++++++++++++++++++++++
         src/Dictionaries/HashedDictionary.cpp               |  74 +++++++++-----------------------------------------------------------------
         src/Dictionaries/HashedDictionary.h                 |  44 +++-----------------------------------------
         src/Dictionaries/HashedDictionaryCollectionTraits.h | 102 ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
         src/Dictionaries/HashedDictionaryCollectionType.h   | 134 ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
         6 files changed, 304 insertions(+), 114 deletions(-)
        ```

*In clang-16 this optimization cannot be used for some types, due to [ABI change](https://github.com/llvm/llvm-project/commit/277123376ce08c98b07c154bf83e4092a5d4d3c6)*

notes:
        - The funny thing here is that while I was writing this patch, in parallel I converted ClickHouse builds to clang-16, and this breaks this dictionary for some types, because in clang-16 they changed the ABI

---
        ### `SPARSE_HASHED` **v2**

<small>_It is called v2 only on slides_</small>

```sql [9]
        CREATE DICTIONARY ranks_sparse_hashed_v2
        (
            `Key` UInt64,
            `Value` UInt16
        )
        PRIMARY KEY Key
        SOURCE(CLICKHOUSE(TABLE 'local_ranks'))
        LIFETIME(0)
        LAYOUT(SPARSE_HASHED());
        ```

<small>_Available since: [23.5](https://github.com/ClickHouse/ClickHouse/pull/49380)_</small>

---
        ### `SPARSE_HASHED` **v2**: Summary

- **~40% less memory**
        - better then `SPARSE_HASHED v1` in terms of memory and speed (3x)
        - But there may be some problems with this due to quadratic size growing

---
        ### What's next?

Remember that that `HashMap` has 0.5 max load factor:
        - 0.5 max load factor: 20GiB
        - 1   max load factor: 10GiB

So let's see how it will work for lookups and loads!

<small>*In some cases hash tables can degrade the performance with high load factors (>0.7) significantly due to [primary clustering](https://en.wikipedia.org/wiki/Primary_clustering)*</small>

<small>*Though, there is a [paper that shows the opposite](https://arxiv.org/pdf/2107.01250.pdf), however it requires "graveyard hashing"*</small>

---
        ### `MAX_LOAD_FACTOR`

```[|13]
        $ git show --stat 2996b3860612b6990867c197d630fc50528ec5b8 -- :^tests :^docs
        Date:   Mon May 1 20:34:47 2023 +0200

Add ability to configure maximum load factor for the HASHED/SPARSE_HASHED layout

...

src/Dictionaries/HashedDictionary.cpp             |  30 +++++++++++++++++++++++++++---
         src/Dictionaries/HashedDictionary.h               |   1 +
         src/Dictionaries/HashedDictionaryCollectionType.h | 102 ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++--------
         3 files changed, 122 insertions(+), 11 deletions(-)
        ```

---
        ### `MAX_LOAD_FACTOR`

<small>_There is still quadratic grower (to make it possible to use shifts instead of mod/div), hence we need to use as big load factor as possible_</small>

```sql [9]
        CREATE DICTIONARY ranks_sparse_hashed_v2_98
        (
            `Key` UInt64,
            `Value` UInt16
        )
        PRIMARY KEY Key
        SOURCE(CLICKHOUSE(TABLE 'local_ranks'))
        LIFETIME(0)
        LAYOUT(SPARSE_HASHED(MAX_LOAD_FACTOR 0.98))
        ```

<small>_Available since: [23.5](https://github.com/ClickHouse/ClickHouse/pull/49380)_</small>

---
        ### `MAX_LOAD_FACTOR`: Summary

type|memory|lookup million rows/s *|load million rows/s|memory overhead
        -|-|-|-|-
        `HASHED`|32GiB|11.35|4.32|3.44
        `SPARSE_HASHED`|22.4GiB|3.67|1.08|2.36
        `SPARSE_HASHED` v2|20GiB|10.09|4.08|2.14
        `SPARSE_HASHED` v2 + `MAX_LOAD_FACTOR 0.98`|10GiB (*0.9313*)|6.27|2.22|1.07

---
        ### What's next?

The loading is still very slow...

---
        ### Loading...

Let's do parallel load, but how?:
        - One way to use locks, but:
          - it is not cache friendly
          - not to mention cache contention
        - Use separate hash table per thread

---
        ### `SHARDS`

```[|11]
        $ git show --stat 8225d28  -- :^tests :^docs
        commit 8225d2814c8dd6e8711c4f8cff31452a1c112e1c
        Date:   Wed Jan 18 13:37:10 2023 +0300

Merge pull request #40003 from azat/dict-shards

Add ability to load hashed dictionaries using multiple threads

src/Dictionaries/HashedDictionary.cpp | 610 ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++-----------------------------------------------------------
         src/Dictionaries/HashedDictionary.h   | 108 +++++++++++++++++++++++++++++---------------
         2 files changed, 538 insertions(+), 180 deletions(-)
        ```

---
        ### `SHARDS`

```sql [11]
        CREATE DICTIONARY ranks_sparse_hashed_v2_98_shards16
        (
            `Key` UInt64,
            `Value` UInt16
        )
        PRIMARY KEY Key
        SOURCE(CLICKHOUSE(TABLE 'local_ranks'))
        LIFETIME(0)
        LAYOUT(SPARSE_HASHED(
            MAX_LOAD_FACTOR 0.98
            SHARDS 16
        ))
        ```

<small>_Available since: [23.1](https://github.com/ClickHouse/ClickHouse/pull/40003)_</small>

---
        ### `SHARDS`: Summary

**Load speed is 16x faster!**

---
        ### Overall summary

- **3x less memory**
        - **8x faster load**
        - **2x slower lookups**

And just **~2K** lines of code:

```[|9]
        $ git show 6fa234c 2a9ff30  8225d28 --shortstat | \
          grep 'files changed' | \
          tee /dev/stderr | \
          awk '{c+=$1; i+=$4; d+=$(NF-1)} END {print "###"; printf("%s files changed, %s insertions(+), %s deletions(-)\n", c, i, d)}'
         8 files changed, 244 insertions(+), 27 deletions(-)
         20 files changed, 862 insertions(+), 156 deletions(-)
         8 files changed, 762 insertions(+), 189 deletions(-)
        ###
        36 files changed, 1868 insertions(+), 372 deletions(-)
        ```

*Note, `SPARSE_HASHED` based on `sparsehash` is still there when it is benefitial (i.e. for Array)*

---
        ### Real example

- 12 trillion of elements
        - 8 byte key
        - 2 byte value

Before:
        - **512GiB**

After:
        - **163GiB**

---
        ### Conclusion

- You should always ask yourself is it works good enough?
        - You should always benchmark code!
        - You should always optimize code!

---
        Thank you.
